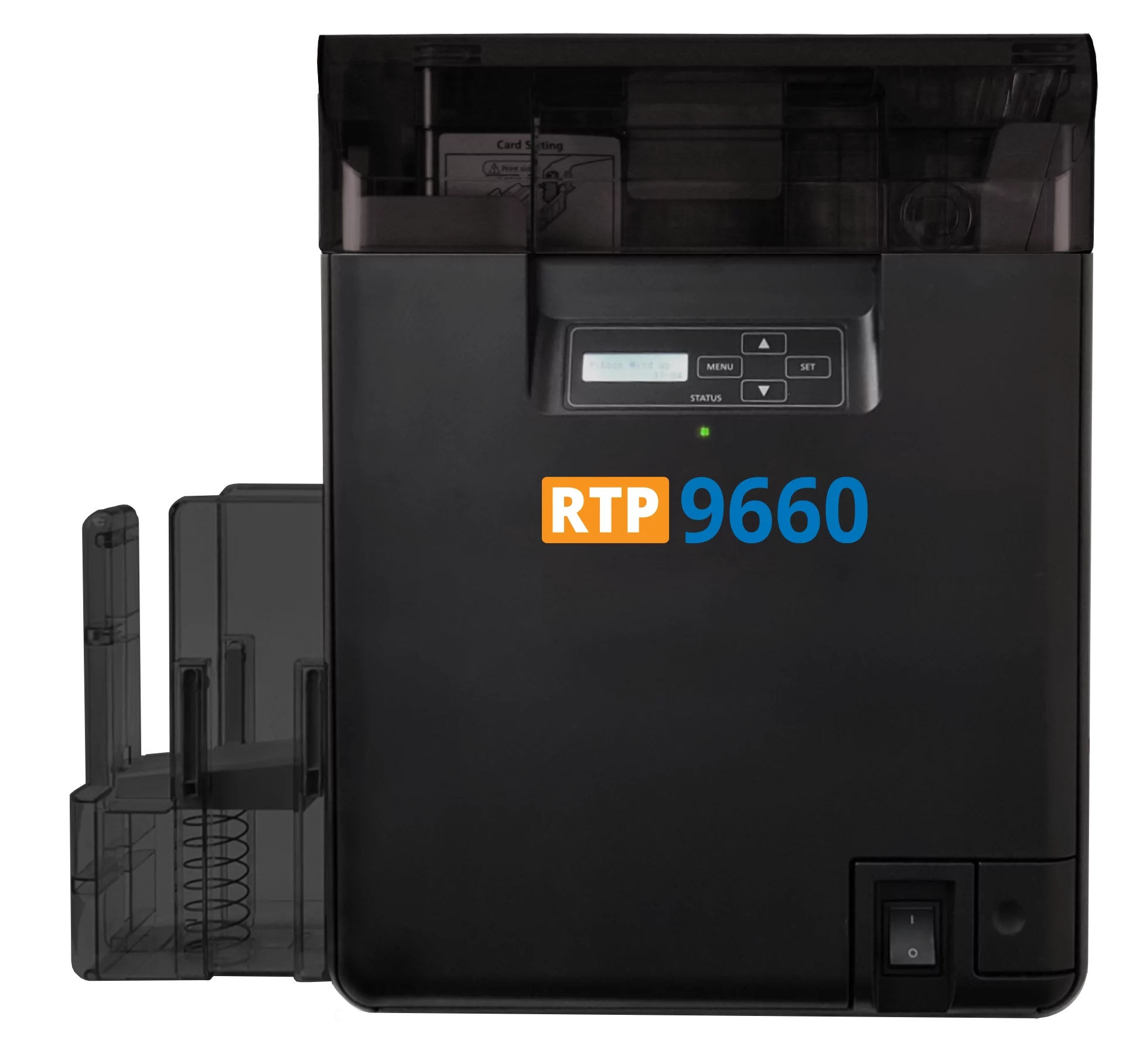

PPC RTP 9660 Re-transfer Card Printer
The PPC RTP9660 is versatile printing on both CR 80 cards and name badges (1.3mm). Along with traditional over the edge printing features of re-transfer printers, the RTP9660 exhibits industry leading 24Bit continuous tone and unique 600dpi printing capability.
The RTP9660 is also one of the fastest printers in it’s class, making it ideal for bureaus and large volume, premium quality card issuance.
- Australia’s #1 Selling Brand
- 24Bit Colour
- Dual Sided Printing
- Built in Ethernet
- 100,000 Mean Time Between Failure (MTBF)
- Optional: Contactless Encoding
- Optional: Laminator
The RTP9660’s retransfer printing technology allows you to print FULL COLOR, FULL BLEED IMAGES in brilliant true colour. The retransfer process uses dye sublimation to print a high-resolution image in reverse directly onto the film base. The printer then thermally transfers the image and film onto the card surface through heat and pressure, thermally bonding it to the card surface. The RTP9660 offers a high speed, 600 dpi, 24-bit color and prints at the astounding speed of over 1451 cards/hour! The RTP9660 comes available with an optional encoder, mag encoder, contact encoder and/or contactless encoder.
Feature | Details |
|---|---|
| Printing Method | Dye-sublimation retransfer printing |
| Resolution | 600DPI |
| Input | R/G/B 256 level |
| Output | Y/M/C/UV 256 level |
| Printing area | Over the edge on CR-80 cards |
| Printing speed (Single printing YMCK) | More than 22.5s full color YMCK (170 cards/hr) |
| Printing speed (Double printing YMCKK) | More than 36s full color YMCKK (100 cards/hr) |
| Feeder capacity | 250 cards (if card thickness is 0.76mm) |
| Card exit capacity | 250 cards (if card thickness is 0.76mm) |
| Card thickness | 0.25 to 1.0 mm |
| Card size | CR-79 & CR-80 |
| Card material | PVC, PET, PC, ABS (Except PVC cards need prior confirmation ) |
| Display | LCD Panel (with back light), LED, Operation |
| Weight | (20kg) |
| Dimensions | 436mm W x 340mm H x 297mm L |
| Weight | (20kg) |
| Power Source | AC90/125V, 220/240V, 50/60 Hz |
| Power consumption | Less than 3A (100V) |
| Operating temperature | Sheltered office environment 10°C to 30°C |
| I/F | USB and Ethernet 10 Base-T, 100 Base-T |
| Drivers | Windows Vista, Windows Server 2008 R2, Windows 7/8/10 drivers all supplied with printer |
| Ribbon capacity | 500 images / roll (YMCK) |
| Film Ribbon | Clear Retransfer, Holographic Retransfer |
| Ink Ribbon | YMCK, YMCKK, YMCKHs (except for PVC Card)YMCKP (for smart card), YMCFK (UV ink) |
| Agency listing | UL/CSA/CE/FCC |
| Printer warranty | 3-year Return to Base Warranty |
| Print head warranty | Limited lifetime |
| MTBF | 100,000 prints |
| Extendibility | 2 USB HUBS (inside printer) |
| Memory size | 64MB |
| Laminator | Dedicated retransfer laminator (Available soon) |
| Encoder | Mag Encoder, Contact Encoder, Contactless Encoder* |
Print Your Own Name Badges
Create your own custom name badges and save both time and money with the PPC RTP9660! You can produce high-quality name badges for under a dollar each. Enjoy the convenience of on-demand printing, allowing you to personalise and print badges whenever you need them, all while keeping costs low.
PPC has set the standard for thick double hand-snapped name badges, a popular choice across Australia known for their exceptional durability and sleek, professional finish. Adhesive magnets and pins available.
